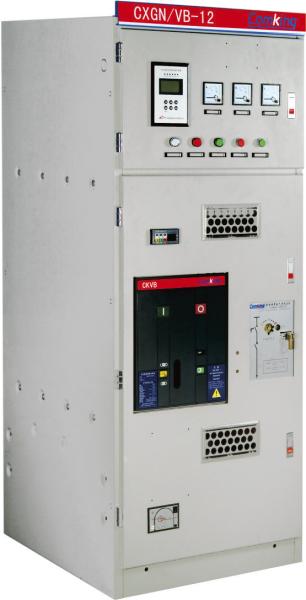

    24kV Vacuum Breaker Switchgear CXGN VB

    1.Description
    CXGN/VB is the vacuum breaker switchgear work in the voltage range maximum up to 24kV.
    2. Working Condition
    2.1 Ambient air temperature: -25℃~+40℃
    2.2 Ambient humidity:
    ----relative average daily humidity: ≤95%
    ----relative average daily water vapor pressure: ≤2.2kPa
    ----relative average monthly humidity: ≤90%
    ----relative average monthly water vapor pressure: ≤1.8kPa
    2.3Altitude: ≤1000m
    2.4 Earthquake intensity: ≤magnitude 8
    2.5 Applicable in the places without obviously polluted by dust, smoke, corrosive or flammability gas, vapors or salt spray.
    2.6 Severity in condensation and pollution condition: according to level I of GB3906 standard.
    Remak:
    (1) Please install heater to avoid condensation when the relative humidity is more than 70%.
    (2) Exceeding above working condition is available as customized product.
    3. Standard
    ----GB3906-2006
    ----GB/T11022-1999
    ----GB1984-2003
    ----GB1985-2004
    ----GB/T16927-1997
    ----DL/T404-2007
    ----DL/T403-2000
    ----JB/T3855-2008
    ----IEC60694-1996
    ----IEC62271-2003
    ----IEC60056-2001
